Main Feature
Equipped with 4 inches and pixel of 800*480 touchable LCD.
6 ways signal input, each way can be independently set 12 bands parameter EQ with high-pass filering, low-pass filtering, dynamic compression and excitation function.
Echo and reverb can be independently set 5 bands parameter EQ with high-pass filtering and low-pass filtering.
8 ways independent output, each way can be independently set 9 bands parameter EQ with high-pass filering, low-pass filtering, dynamic compression and excitation function.
High power floating decimal DSP technology and high resolution 24 bit A/D and D/A convertor to ensure unlimited internal dynamic range.
192KHZ sample frequency with compressing and time delay.

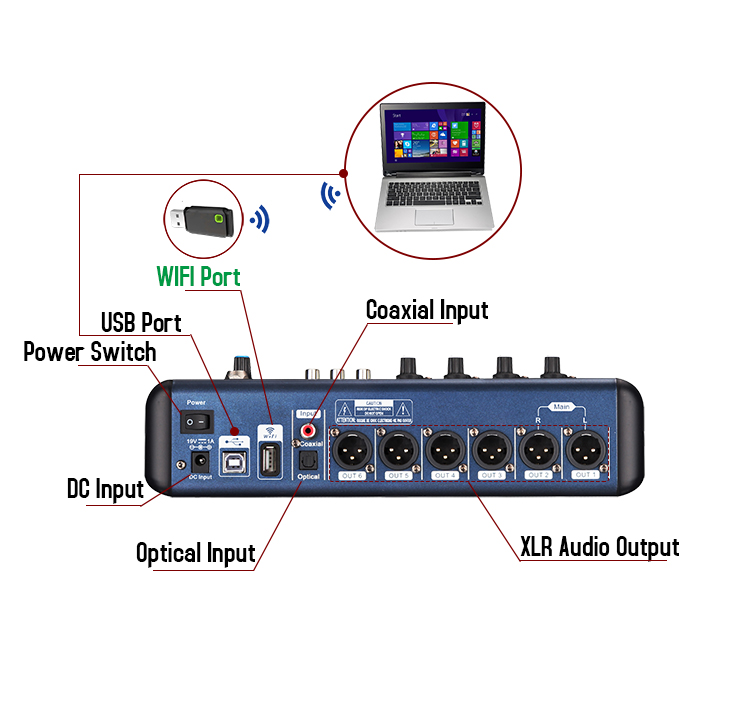

Connect with PC by WIFI/USB port
32 Bit high-performance DSP.
Suitable for stages, pubs, KTV rooms, large conference rooms and etc.
Technical Specifications
| SNR:MIC:113db, MUSIC:115db |
| THD:0.005%(20Hz~20KHz) |
| Frequency response:20Hz~20KHz( 5dB) |
| Max input level:MIC: -11.2dbu,MUSIC: +2.73dbu |
| Max output level:MIC:+14.8dbu,MUSIC: +14.8dbu |
| Input impedance:MIC:10K Ohm, MUSIC: 22K Ohm |
| Output impedance:300 Ohm |
| DSP:32bit |
| AD/DA:192KHz 24bit |
|
Supply voltage:AC 220V / 50Hz ±10% |
